Recommended Starting Laser Settings
IMPORTANT: Laser settings are provided as starting points only and may not produce the desired results on every machine or material. Always test before engraving your final product. The Laser Outpost is not responsible for engraving outcomes or damaged products. Refunds or replacements will not be issued for engraving-related damage.
Swipe left to view more settings →
| Laser Machine | Source | Material / Color | Power | Speed (mm/s) | Passes | LPC/LI | Freq. | Angle | Crosshatch | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| xTool F1 Ultra | Blue Light | Leatherette - All Colors Except Metallics | 70% | 800 | 1 | 280 | — | — | — | — |

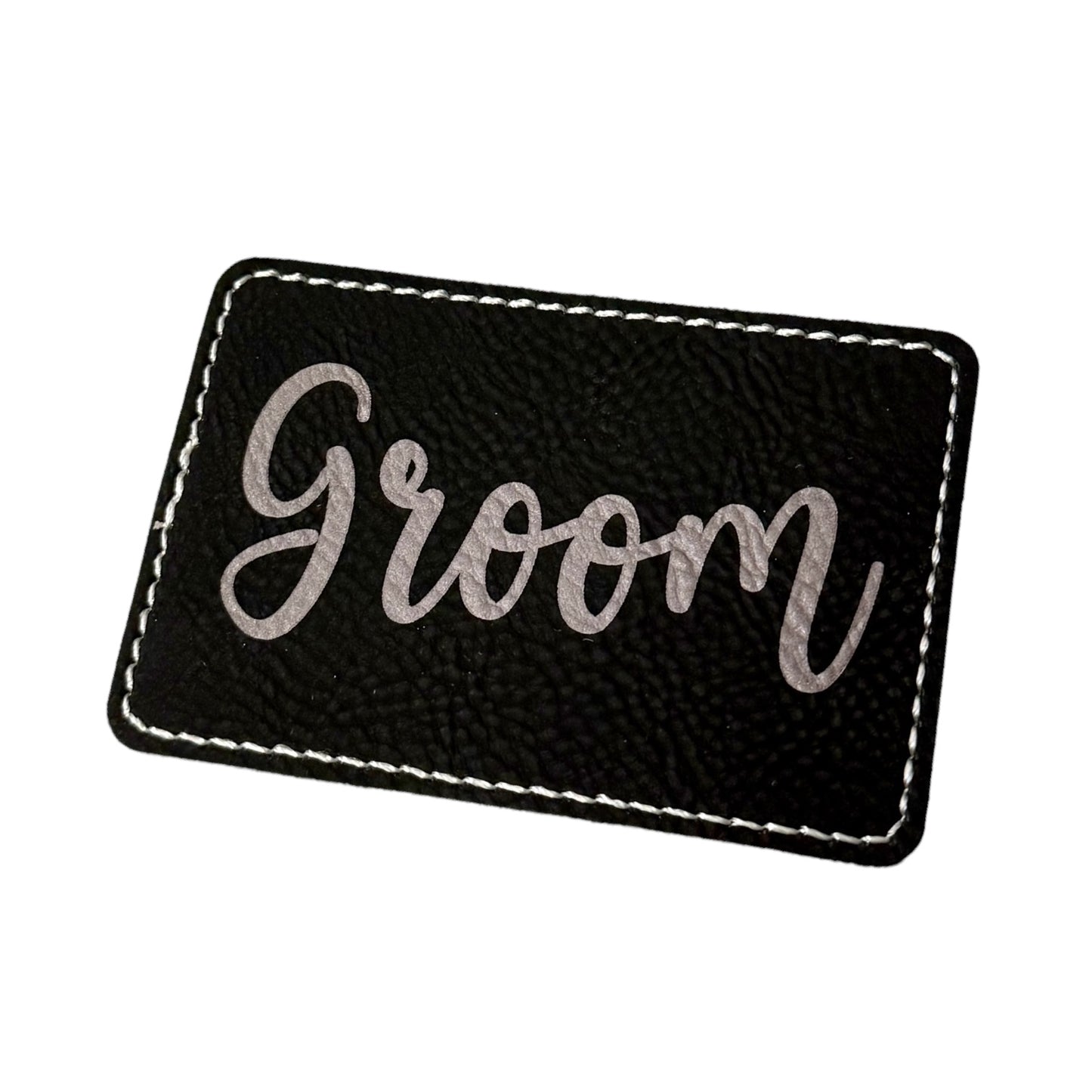

| xTool F2 | Blue Light | Leatherette - Black Engraves Silver | 60% | 1000 | 1 | 120 | — | — | — | — |
| xTool F2 Ultra UV | Engrave | Leatherette - Black Engraves Silver | 45% | 220 | 1 | 190 | 40 | — | — | Defocus 1mm |

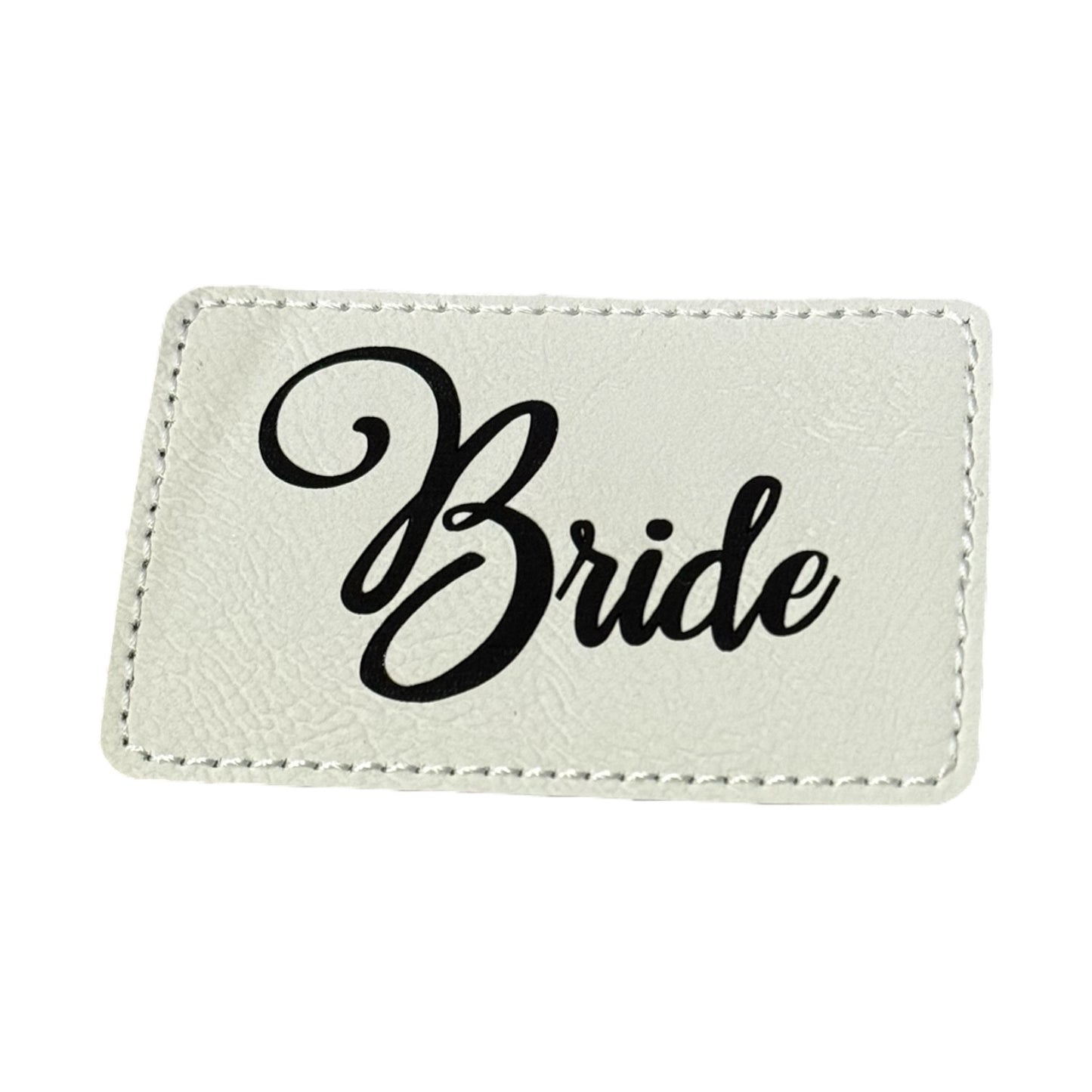

| xTool F2 Ultra UV | Engrave | Leatherette - White Engraves Gold | 55% | 160 | 1 | 100 | 40 | — | — | Defocus 4mm |
| Aeon Mira 9 - 100 watts | Co2 | Leatherette - Black Engraves Silver | 500% | 12 | 1 | 0.085 | — | — | — | — |
| Aeon Mira 9 - 100 watts | Co2 | Leatherette - All Colors Except Mettalics | 450% | 20 | 1 | 0.085 | — | — | — | — |
Important: Always test on a sample before engraving your final product.
